E.C.S (Midlands) is the leading supplier of low pressure aluminium cylinders for fire applications, in size ranges from 80 mm to 108 mm diameters. Our cylinders are CE certified to EN3-8.
About Us
fire extingisher servicing
About Us
E.C.S (Midlands) is the leading supplier of low pressure aluminium cylinders for fire applications, in size ranges from 80 mm to 108 mm diameters. Our cylinders are CE certified to EN3-8. We have been making seamless aluminum cylinders for over 30 years, working in collaboration with Bruin Engineered Parts in Canada..

All over the UK

With storage facilities in the Birmingham area of the United Kingdom, where standard sizes and other stock is available for next day delivery.

Qualified Technicians

E.C.S. (Midlands) Limited is able to service fire extinguishers with fully qualified service technicians on your premises and offers training of staff and technicians to suit your needs.

Our partners
We have a range of partners
from the British Fire Consortium.
Cylinders

We make seamless impact extruded low pressure
aluminum cylinders.

We can make 4 diameters and various lengths. All below are CE approved sizes. Pressure equipment directive approval is granted by Apregaz in Belgium (CE0029). We operate under B1 and Module F ( B1 = type approval) (F = batch approval) we get a module f for every Batch produced.

Batch will be a letter sequentially increasing every time and the year of manufacturing.

Stocked Sizes
Part No. Diameter Length Volume
FO102 80mm 203mm 775ml
FO603 80mm 263mm 1076ml
FO208 90mm 275mm 1400ml
FO604 108mm 307mm 2218ml
FO504 108mm 370mm 2600ml

Additional approved sizes (Not stocked)
Part No. Diameter Length Volume
FO202 90mm 222mm 1100ml
FO605 133mm 375mm 4080ml
The manufacturing process achieves the strength of the material, which is 99.8% aluminum. 1 in every 500 produced is burst.

The design based around EN3-8 and the formulas contained in there to arrive at the wall thickness.

All cylinders are subject to a pressure test which is 1.43 x working pressure we have two working pressures commonly PS = 18.8 and 23

The burst test is typically 55 bar

We have two types of neck configeration:

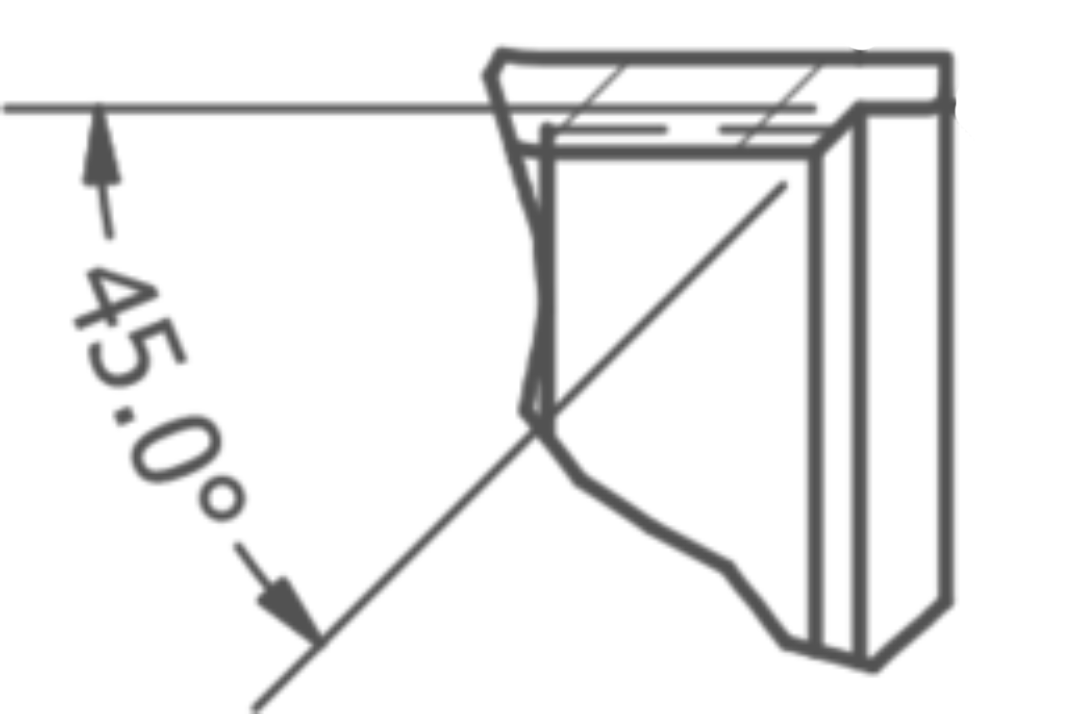

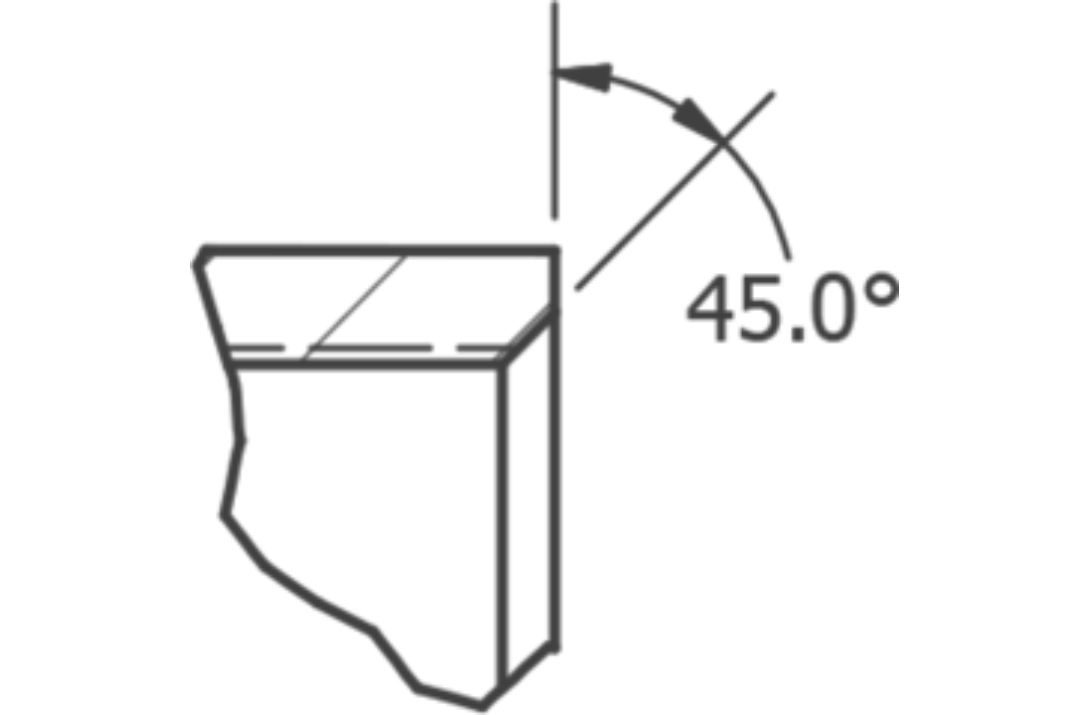

Type A - Counterbore Type B - Chamfer
More Suitable for water based mediums and smaller extinguishers More Suitablie for powder and larger extinguishers
Most cylinders are made with the M30x1.5 thread however they can be made with other threads

For Example:
TR30
1 1/8 - UNEF

Production runs can be made in any RAL colour or unpainted.
Common colours :-RAL3000 - Fire Red
  :-RAL6024 - Traffic Green
Working Pressure (filling pressure) = 16.5 Bar at 20oC

PS (Developed Pressure +60oC = 18.8 Bar

PT (Test Pressure) = 27 Bar

Minimum Burst = 55 Bar

Temperature range -30oC to +60oC p
Components

We can supply a wide range of components for fire extinguishers and extinguishing systems.

Items Stocked

Brackets Valves Gauges Dip Tubes
Automatics Sprinkler Bulbs Nozzels Pins / Strings
Straps Hoses Horns Stands
T-Bars Filling Adaptors Clamp Tags
Foam Powder Fat Seal Freezol
Servicing

We can service and maintain fire extinguishers.

Our technicians are trained by the British Fire Consortium and have regular updates on changes to British Standards.

We work to the Maintenance Standard referred to in the RRO (Regulatory Reform Order 2005 (Fire Safety) which is BS5306-3:2008. Siting and positioning of fire extinguishers in accordance with BS5306-8:2012 Refilling in accordance with BS5306-9:2015.

We pride ourselves on working to the standards and try to work for you our customers hence we keep the price of annual service to a minimum.
Contact Us

Get in touch!

E.C.S. (Midlands) Limited is able to service fire extinguishers with fully quilified service technicians on your premises and offers training of staff and techicians to suit your needs.
